BIGTREETECH Manta M8P V2.0 Integrated Control Board 32Bit Running Klipper with CB1, High Speed 3D Printer Motherboard, Compatible TMC5160T Plus,TMC5160,TMC2209,TMC2240 Stepper Driver (Without CB1)

Marque: BIQU
Socket du CPU: LGA 1724
Appareils compatibles: Imprimante, Ordinateur personnel
Technologie de mémoire RAM: DDR4
Processeurs compatibles: STM32H723ZET6
Type de chipset: STM32H723ZET6
Vitesse d'horloge de mémoire: 550 MHz
Nom de modèle: Manta M8P V2.0
Type de connecteur d'alimentation principal: 24 broche
Interface de carte graphique: Intégré

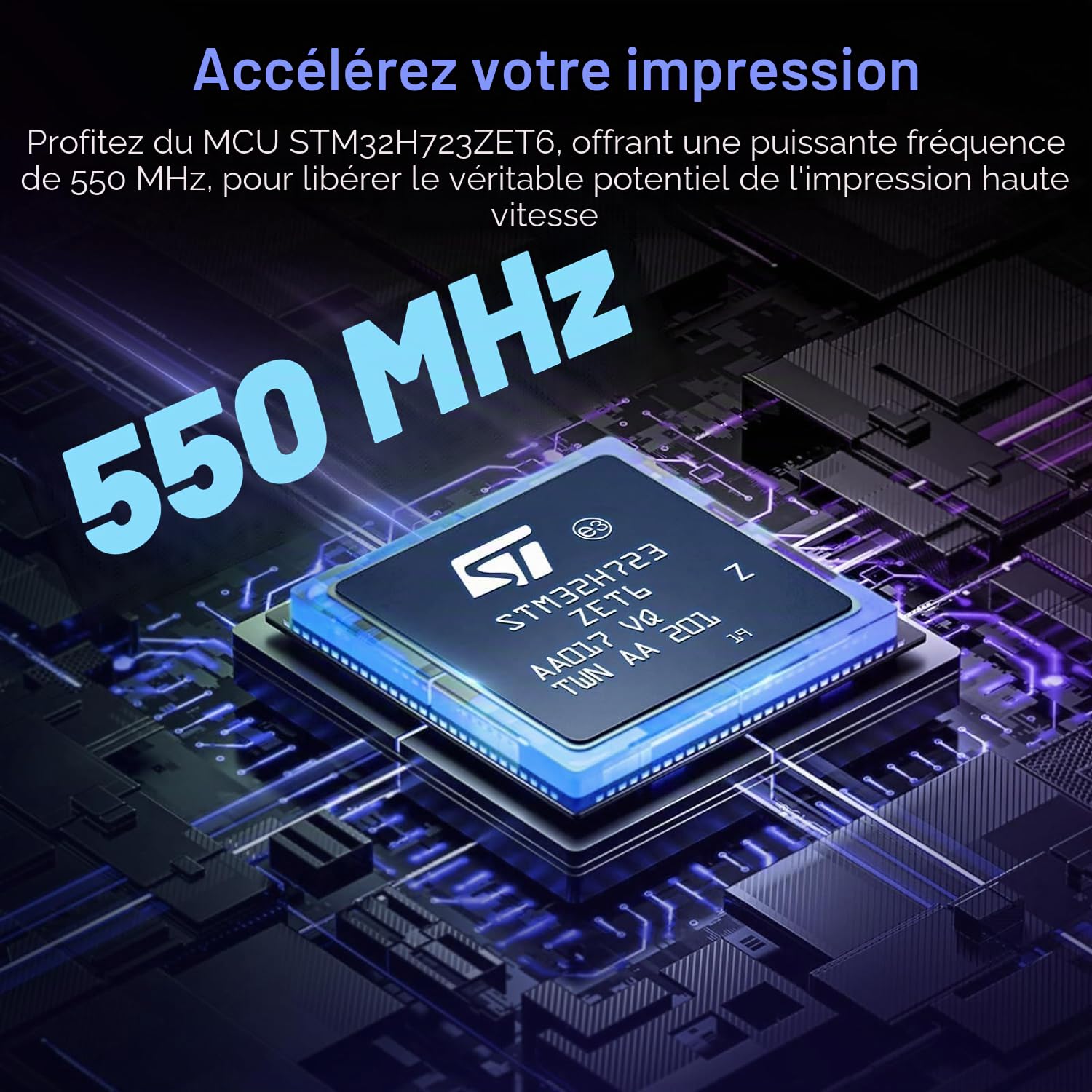

- BIGTREETECH Manta M8P V2.0 Control Board uses 32-bit ARM Cortex-M7 series STM32H723ZET6 main control chip with a core frequency of 550MHz. High efficiency MOSFET for less heat generation

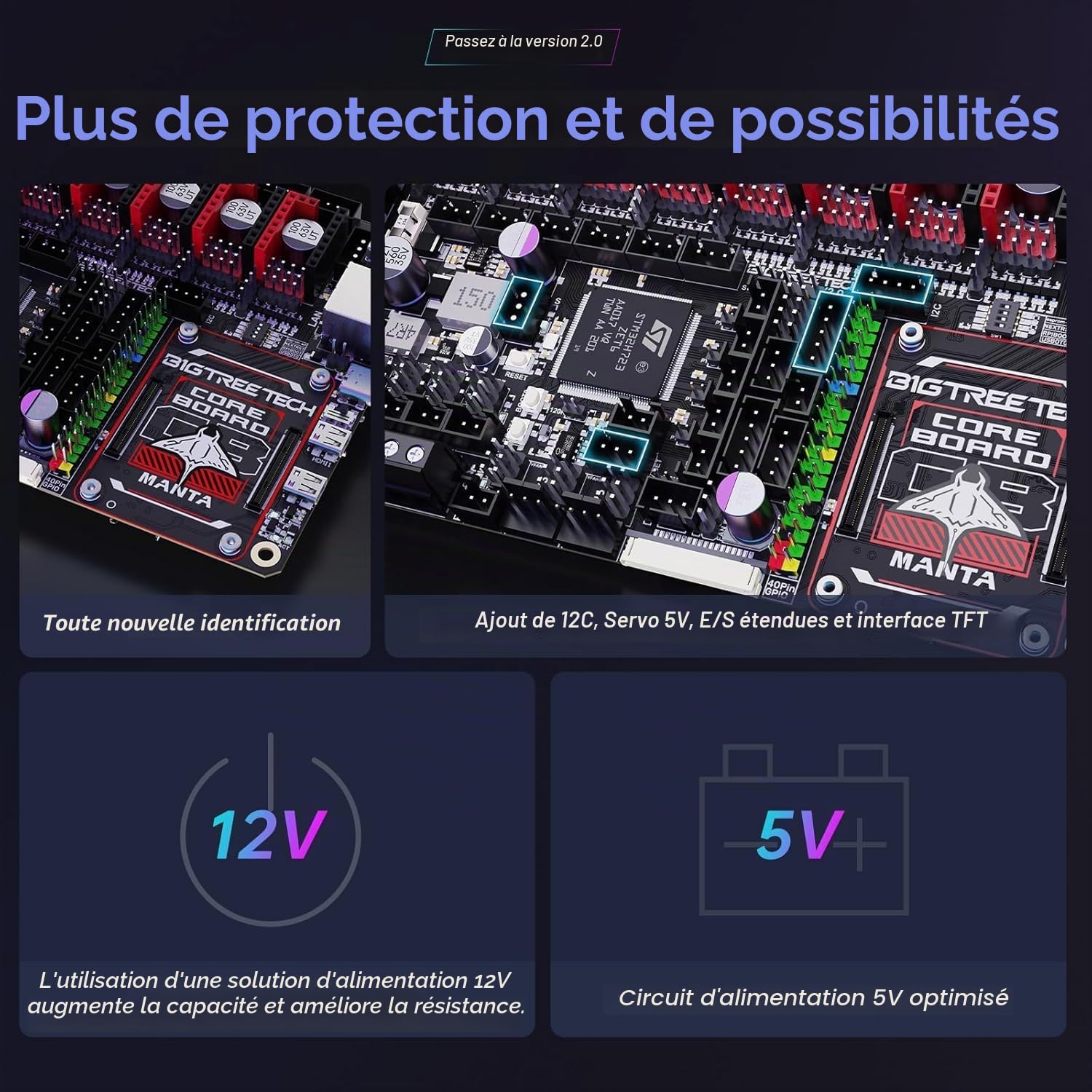

- The power chip of Manta M8P integrated main control board adopts TPS5450-5A, which supports DC12/24V power input; the output current of this chip is up to 5A, and the peak value can reach 6A, which perfectly supports the power supply of Raspberry-Pi

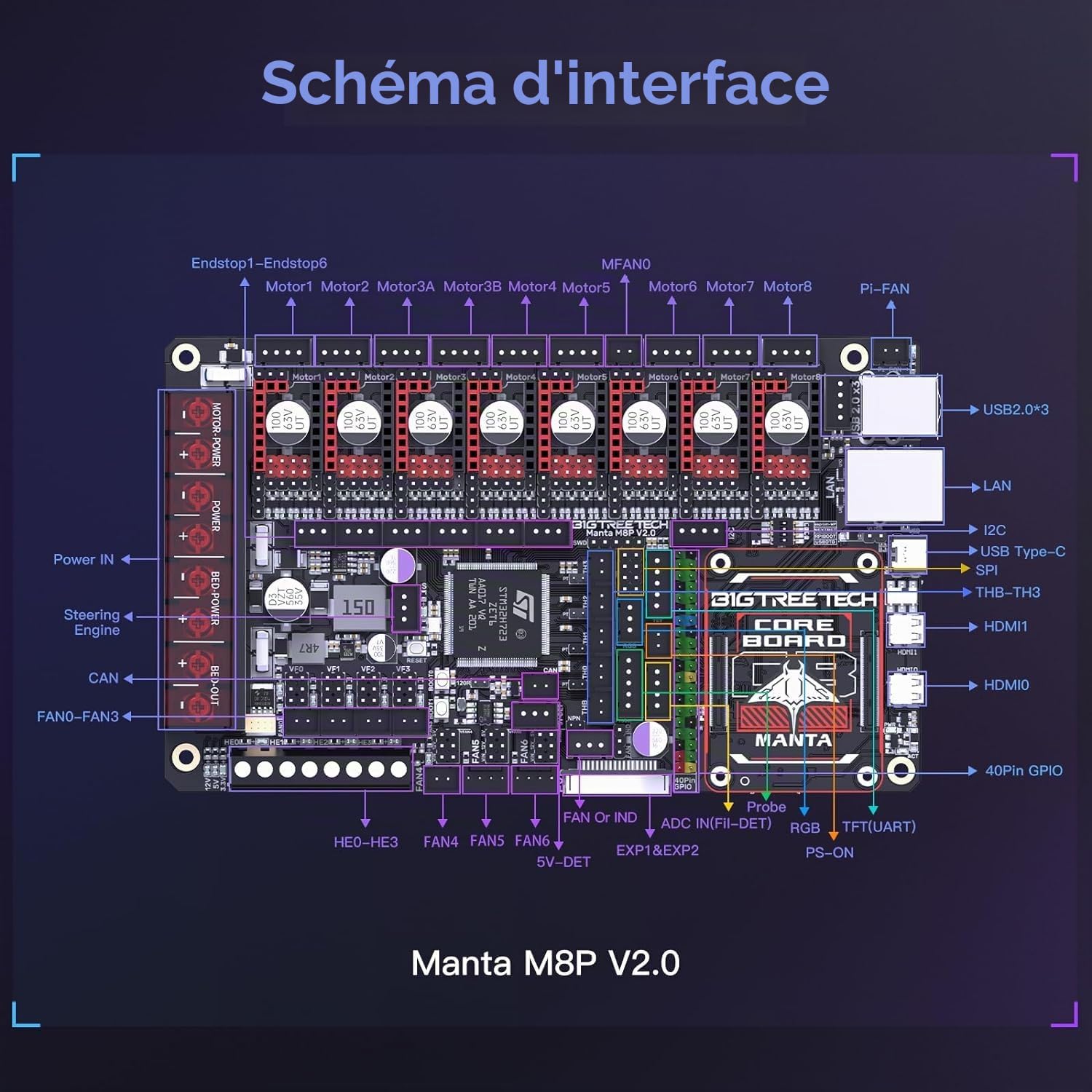

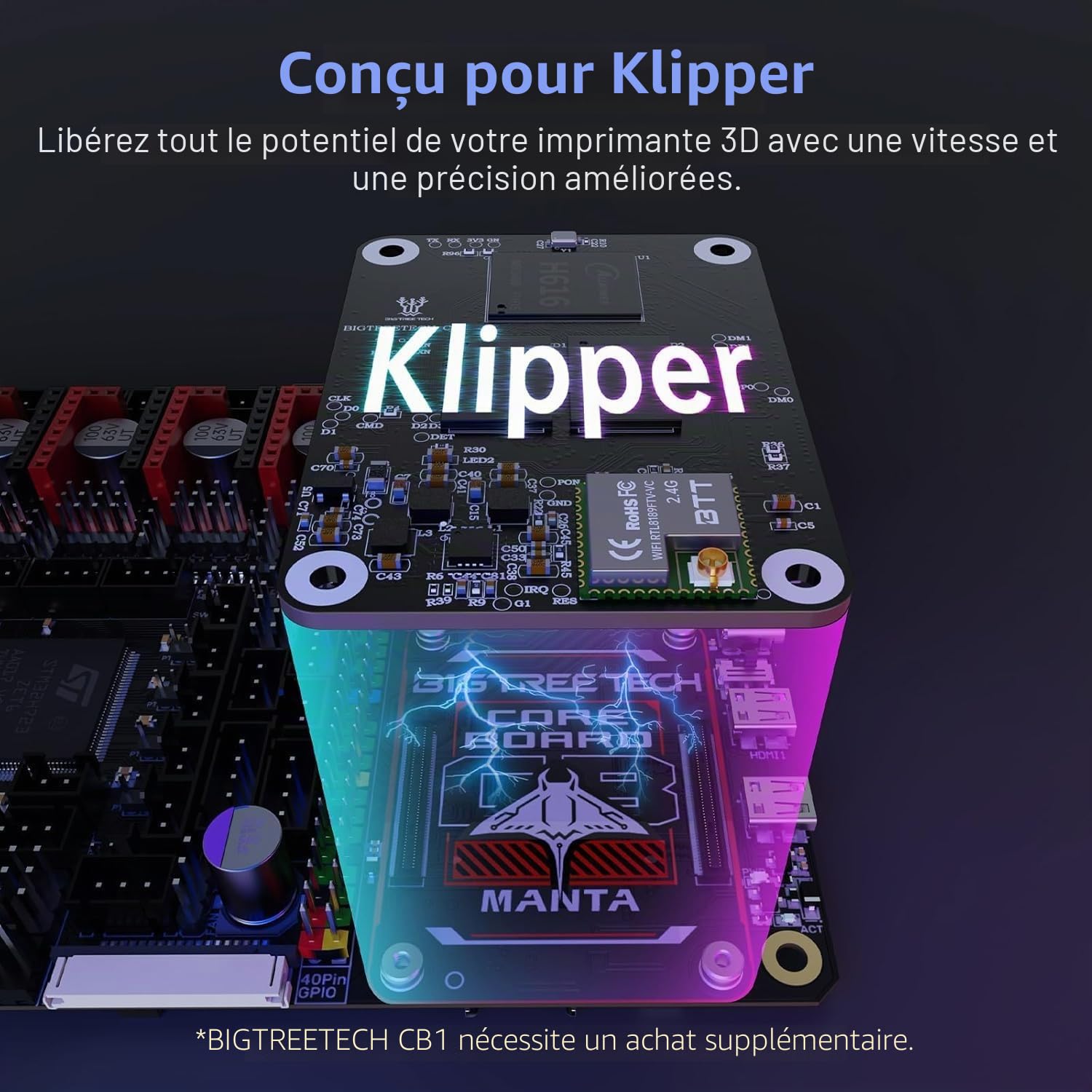

- The control board and the core board use BTB connection method, so that other core board solutions other than CM4 can be selected, such as BIGTREETECH CB1. The mainboard reserves the SPI expansion interface for using the Klipper firmware to connect an external acceleration sensor for acceleration compensation
- The thermistor can select the pull-up resistance value through the jumper, which supports PT1000 without external modules, which is convenient for DIY use; the control board reserves a three-way four-wire fan interface, which can be used to connect a water cooling device
- The MCU firmware can be upgraded through SD card, or through DFU through Klipper's make flash command; the main board reserves the proximity switch interface, supports NPN and PNP type selection, (24V, 12V, 5V) voltage optional, shared with VFAN6 Voltage selection
